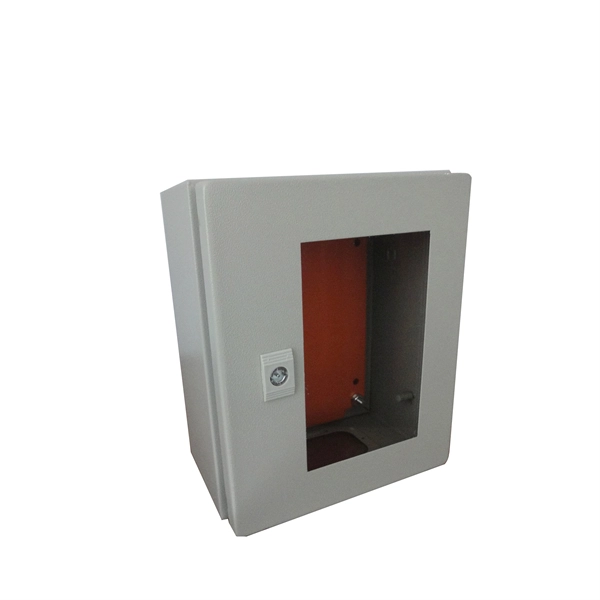

Building entrance electrical distribution box

Fiber and communications infrastructure knowledge brief Published 14 Apr 2025

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

A building entrance electrical distribution box safely receives utility power and distributes it to circuits throughout the building while ensuring compliance with safety standards.

Purpose and Function

The distribution box at a building entrance serves as the main hub for electrical power. It receives incoming electricity from the utility service and distributes it to various circuits via protective devices such as MCBs, RCDs, RCBOs, fuses, and surge protectors. It ensures organized wiring, prevents overloads, and protects both the building and occupants from electrical hazards.

Components

A typical distribution box includes: Main breaker or isolator to disconnect power. Busbars for neutral and earth connections. Circuit breakers or fuses for individual circuits.

Surge protective devices to guard against voltage spikes.

DI

N rails for mounting modular components. Enclosure with appropriate IP/NEMA rating for protection against dust, moisture, and impact.

Installation Requirements

Proper installation is critical for safety and compliance: Location: Install in a dry, accessible area with good ventilation, typically at a height of 1. 5–2 meters from the floor. Clearances: NEC requires a minimum working space of 30 inches wide, 36 inches deep, and 6.

5 feet high in front of the panel. Mounting: Ensure the panelboard door can open 90° and that no equipment protrudes more than 6 inches beyond the front. Wiring: Use correct wire gauge, secure grounding, and neat cable management.

Include spare ways for future expansion. Standards Compliance: Follow NEC, IEC 61439, UL, CE, or local codes for materials, protective devices, and installation.

Service Entrance Considerations

The service entrance is where utility power enters the building, typically using a 4-wire system: two hot wires, one neutral, and one grounding wire. Proper sizing, grounding, and protective devices are essential to ensure safety and reliable operation.

Maintenance and Safety

Perform visual inspections and multimeter tests before energizing. Schedule regular maintenance to check for loose connections, corrosion, or overheating. Label all circuits clearly and consider modular designs for easier upgrades.

By following these guidelines, a building entrance electrical distribution box can provide safe, reliable, and code-compliant power distribution for residential, commercial, or industrial buildings.
