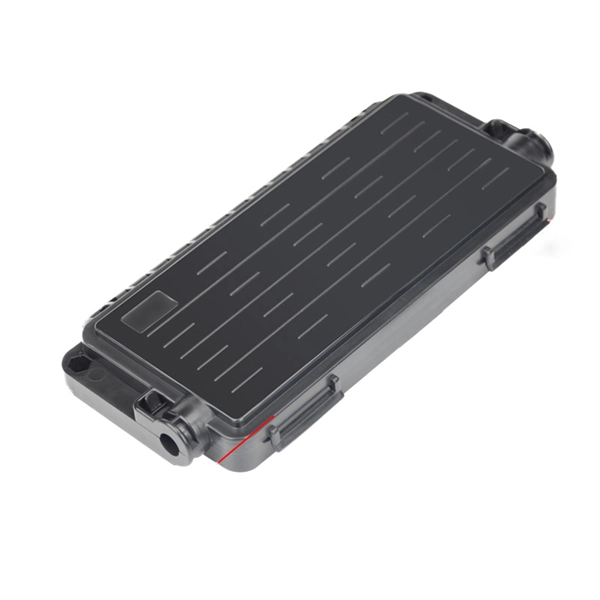

Where is the Huawei optical splitter expansion port

Huawei optical splitter expansion ports allow flexible connection of remote optical modules, supporting both uplink and downlink traffic without wavelength pairing requirements.

Overview of Huawei Optical Splitters

Huawei optical splitters, such as the PEN passive aggregation module and the OSPL43201, are designed to split and multiplex optical signals efficiently in passive optical networks (PON) for FTTH deployments. These splitters can operate without a power supply, reducing fire risks and enabling flexible installation in various network environments. The OSPL43201, for example, provides a 1: 4 split ratio with SC/APC terminations and PLC splitter technology, ensuring high reliability and compliance with G.

657A fiber standards.

Function of Expansion Ports

Expansion ports on Huawei optical splitters serve several key purposes: Downlink Direction: The expansion ports split optical signals from the uplink port proportionally, allowing multiple remote optical modules to receive the same channels without requiring wavelength-specific pairing. Uplink Direction: They multiplex signals from remote modules back into a single uplink channel, enabling efficient aggregation of traffic to the central optical module. Flexible Module Connection: Remote optical modules (numbered 1–8) can connect to any port in the same group, provided each module ID is unique within that row.

This flexibility simplifies network expansion and maintenance. Uplink Backup: Some modules support uplink redundancy, ensuring network reliability in case of port or fiber failure.

Installation and Integration

Huawei optical splitters can be installed in subracks with multiple slots, each accommodating a passive aggregation module like the HW-PEN-16LC-2KM or HW-PEN-16LC-10KM. These modules integrate seamlessly with Huawei OLTs, such as the MA5600T, supporting GPON/XG-PON1 deployments and high-density fiber access. The expansion ports allow operators to scale the network efficiently, connecting additional remote optical modules without reconfiguring the entire system.

BenefitsPlug-and-play connectivity: Reduces the need for splicing and simplifies network deployment. Cost efficiency: Passive operation eliminates power requirements and lowers operational costs. Scalability: Expansion ports enable cascading and uneven optical splitting, supporting both local and remote users effectively.

Reliability: Supports uplink backup and flexible module assignment, enhancing network resilience. In summary, Huawei optical splitter expansion ports are critical for scalable, flexible, and reliable PON deployments, allowing operators to connect multiple remote optical modules efficiently while maintaining high network performance and ease of maintenance.
