Fiber optic cable distribution box connection to home

A fiber optic distribution box connects the main network fiber to your home via a drop cable, terminating at an Optical Network Terminal (ONT) that converts light signals into usable data for your devices. Role of the Fiber Optic Distribution BoxA fiber optic distribution box serves as a central point for terminating, splicing, and distributing fiber optic cables from the main network to individual homes or businesses. It organizes and protects delicate fiber cables, allowing for easy identification, maintenance, and future network expansion.

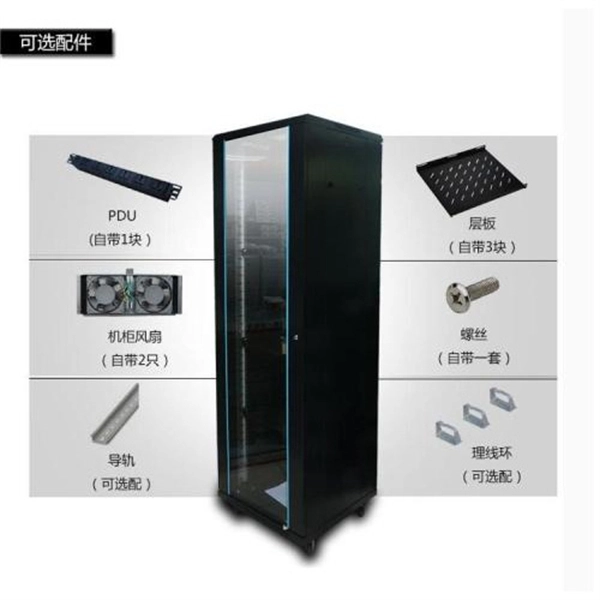

Distribution boxes can be wall-mounted, rack-mounted, or pole-mounted, depending on the installation environment, and they house splitters that divide the main fiber line into smaller strands for multiple subscribers. Connection Process to the HomeFeeder and Distribution Cables: Fiber optic cables run from the central office (CO) or data center to a Fiber Distribution Hub (FDH) in your neighborhood.

The FD

H contains splitters that divide the signal for multiple homes. Drop Cable Installation: From the FDH or street terminal, a drop cable is run to your home. This can be done via underground trenching, directional boring, or aerial installation on utility poles.

The cable is typically protected by a conduit when buried. Network Interface Device (NID) or Wall Box: At your home, the fiber enters a small NID or FTTH wall box, which provides a secure termination point. Inside, the fiber is coiled in a service loop and connected to adapters or splice trays to minimize signal loss.

Optical Network Terminal (ONT): The fiber is then connected to an ONT, which converts the light signals into electrical signals that your home network can use.

The ON

T is usually installed inside or just outside the home and must be connected to a power source. Router or Gateway Connection: Finally, the ONT is linked to your router or gateway via Ethernet, distributing high-speed internet to your devices. In some setups, the ONT and router are combined into a single device, and additional mesh devices may be added for larger homes.

Key Considerations

Signal Quality: Proper termination, splicing, and handling of fiber cables are critical to minimize signal loss. Clean connectors and careful routing prevent damage. Maintenance and Expansion: Distribution boxes allow for easy troubleshooting and future network upgrades without disrupting service.

Safety and Compliance: Installers must avoid underground utilities and follow local regulations during trenching or boring. By following this structured setup, fiber optic internet delivers high-speed, low-latency, and reliable connectivity directly to your home, leveraging the advantages of light-based data transmission over traditional copper networks.
