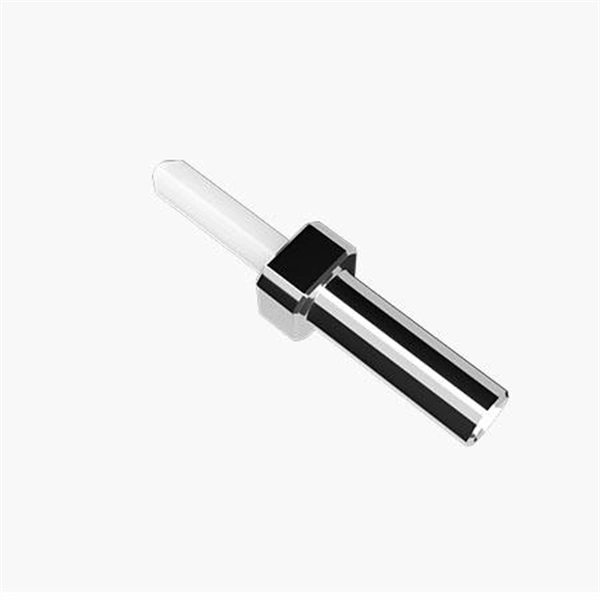

Fiber Optic Communication Fiber Fusion Equipment

Fiber fusion splicing is a precise method for joining optical fibers end-to-end, ensuring low-loss, high-reliability connections essential for modern fiber optic networks.

Overview of Fusion Splicing

Fusion splicing permanently joins two optical fibers by welding their cores together using an electric arc, resulting in minimal signal loss (typically around 0. 1 dB) and reduced back reflection, which is critical for telecommunications, FTTH, and data center networks. Compared to mechanical splicing, fusion splicing provides superior performance, durability, and reliability.

Types of Fusion Splicers

Core Alignment Fusion Splicers: Align the fiber cores precisely for high-performance splicing, ideal for single-mode fibers and critical applications. Cladding Alignment Fusion Splicers: Align fibers based on the cladding, offering portability and ease of use, suitable for field installations. Mass Fusion Splicers: Designed for high-density applications: 16-core splicers for data centers.

4-core splicers for FTTH installations. Ribbon Fiber Splicers: Fuse multiple fibers simultaneously (up to 12), improving efficiency in high-density cabling environments.

Key Features of Modern Fusion Splicers

Automatic core alignment and arc calibration for consistent low-loss splices. Fast splicing and heating cycles: Most modern splicers complete a splice in 5–8 seconds with heating times of 8–15 seconds. AI-powered systems: Some devices, like the weunion AI-9, use intelligent control to optimize welding parameters and simplify operation.

Environmental adaptability: Rugged designs allow operation in high altitude, desert, or cold environments. Connectivity and data management: Bluetooth or cloud syncing for monitoring, storing, and exporting splice data.

Fusion Splicing Process

Fiber Stripping: Remove the protective coating carefully to avoid microfractures, typically 10–20 mm in length. Cleaning: Use lint-free wipes with 99%+ isopropyl alcohol to remove dust, oil, or residue from fiber ends. Cleaving: Precisely cut the fiber end to ensure a flat, perpendicular surface with minimal chips or cracks.

Splicing: Place fibers in the splicer's V-grooves; the machine aligns and fuses the fibers using an electric arc. Inspection: Check for defects such as bubbles, black spots, or misalignment; rework only if necessary to maintain low-loss performance.

Applications

Telecommunications networks: Long-distance and high-speed data transmission. FTTH/FTTx deployments: Efficient installation of fiber to homes or businesses. Data centers: High-density fiber connections requiring mass fusion splicing.

Specialty fibers: Polarization-maintaining fibers, multi-core fibers, and large or thin-diameter fibers.

Best Practices

Regularly maintain splicers, including electrode replacement and blade cleaning. Use proper ergonomic tools for stripping and cleaving to reduce errors. Re-clean fiber ends periodically during extended splicing sessions to maintain low-loss performance.

Select the appropriate splicer type based on fiber format, project scale, and environmental conditions. Fusion splicing remains the gold standard for high-performance fiber optic networks, combining precision, speed, and reliability to meet the demands of modern communication infrastructure.
