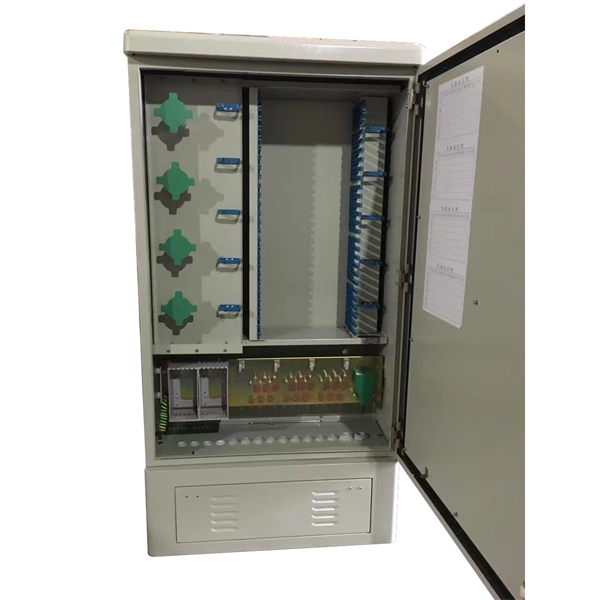

Direct Burial Optical Cable Transfer Hole

Direct burial optical cables can be installed in trenches or using plows, with careful attention to depth, soil conditions, and mechanical protection to ensure long-term performance.

Installation Methods

Direct burial optical cables are typically installed either in trenches or using vibratory/static plows. Trenches are dug to a depth of approximately 1–1. 2 meters (3–4 feet), though deeper burial may be required in cold climates to prevent frost damage.

Plowing allows the cable to be laid directly into the soil with minimal surface disruption, and vibratory plows reduce the drawbar force needed compared to static plows, making installation more efficient in various soil conditions.

Cable Protection and Conduits

While some direct-buried cables are installed without ducts, using HDPE or PVC conduits can provide additional protection against moisture, mechanical stress, and future excavation. In areas without existing duct infrastructure, cables may be buried directly in a trench or plowed in. Armored cables are often used to resist crushing and rodent damage.

A conductive marker tape is recommended above the cable to aid future location and prevent accidental damage, typically buried no more than 300 mm (12 inches) below the surface.

Transfer Hole Considerations

When creating a transfer hole—a point where the cable passes through obstacles such as walls, roadways, or other structures—the following should be considered: Ensure the hole diameter accommodates the cable without excessive bending, respecting the minimum bend radius specified by the manufacturer. Use smooth, rounded edges or protective sleeves to prevent abrasion. Maintain proper alignment to avoid sharp bends or tension that could degrade optical performance.

If pulling the cable through a conduit, a pulling tape and swivel can reduce twisting and mechanical stress.

Safety and Mechanical Precautions

All excavation and cable installation work must comply with OSHA regulations. Trenches deeper than 1. 2 meters require proper shoring, ladders for access, and supervision to prevent collapse.

Cable pulling should be steady, avoiding sudden stops, and forces should remain below the cable's rated limits to prevent long-term transmission loss. Pre-installation site surveys are essential to identify existing utilities and soil conditions, minimizing the risk of damage.

Summary

Direct burial optical cable transfer holes require careful planning, proper trenching or plowing, mechanical protection, and adherence to safety standards. Using conduits, armored cables, and marker tapes enhances durability, while respecting bend radius and pulling tension ensures long-term optical performance.
