Multimode fiber ODF

Fiber and communications infrastructure knowledge brief Published 10 Oct 2021

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

A multimode fiber ODF (Optical Distribution Frame) is a structured solution for managing, terminating, and patching multimode optical fibers in high-density network environments. Overview of Multimode Fiber ODFsMultimode fiber ODFs are designed to organize, protect, and manage multimode optical fibers in data centers, enterprise networks, and LAN environments. They provide a structured environment for splicing, termination, patching, and cable routing, ensuring proper bend-radius compliance and fiber slack storage for reliable network performance.

These OD

Fs are typically compatible with OM1, OM2, OM3, and OM4 multimode fibers, supporting high-speed data transmission over short to medium distances.

Key Features

Port Configurations: Multimode ODFs come in flexible port counts, ranging from 12 to 144 ports, allowing scalable deployment for growing networks. Pigtails and Adapters: Pre-terminated multimode pigtails and SC or LC couplers enable plug-and-play installation and simplify maintenance. Splice Trays: Pull-out splice trays provide organized fiber splicing and routing, reducing stress on fibers and facilitating easy access for technicians.

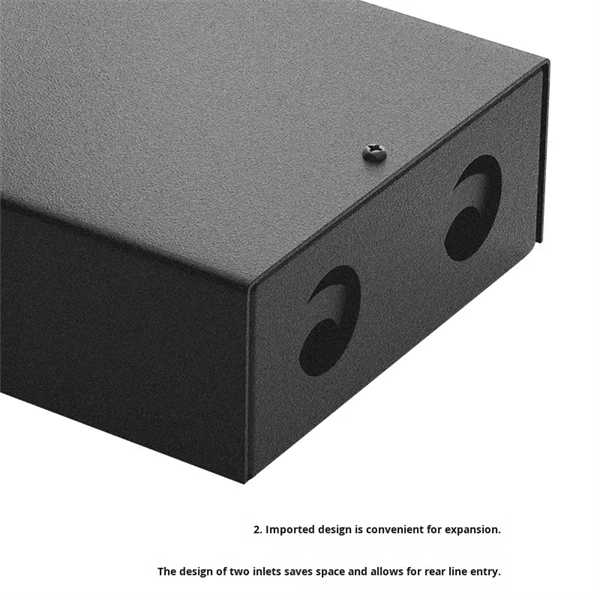

Durable Housing: Cold-rolled steel or similar materials ensure mechanical protection and rack compatibility, typically fitting standard 19-inch racks.

High-

Density Management: Optimized for LANs, data centers, and backbone networks, supporting high-speed multimode links with minimal signal loss. Multimode Fiber Types and ApplicationsOM1/OM2: Suitable for legacy 1–10 GbE networks over shorter distances. OM3/OM4: Laser-optimized multimode fibers (LOMMF) designed for 10–100 GbE applications, supporting distances up to 300 m (OM3) and 550 m (OM4) at 850 nm using VCSELs.

Use Cases: Multimode ODFs are ideal for data center backbones, fiber-to-the-desk deployments, and high-density LAN environments, providing structured cabling and centralized fiber management.

Selection Considerations

When selecting a multimode fiber ODF, consider: Port Density: Match the number of ports to current and future network requirements. Fiber Compatibility: Ensure support for the specific multimode fiber type (OM1–OM4) used in your network. Ease of Maintenance: Look for pull-out trays, clear labeling, and accessible routing paths.

Scalability: Choose ODFs that allow expansion without major reconfiguration. Environmental Protection: Consider housing durability, dust protection, and rack-mount compatibility.

Summary

A multimode fiber ODF is essential for structured, high-density fiber management in modern networks. It ensures efficient splicing, termination, and patching, supports multiple multimode fiber types, and provides scalable, organized, and protected fiber infrastructure for data centers, enterprise LANs, and backbone networks.
