Fiber Optic Router Card Insertion

Fiber and communications infrastructure knowledge brief Published 20 Jul 2025

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

To install a fiber optic router card, power down the device, handle the card and transceivers with ESD precautions, insert the card into an appropriate slot, connect fiber transceivers, and verify connectivity.

Preparation and Safety

Power Down and Disconnect: Ensure the router or server is powered off and unplugged from AC power to prevent electrical hazards and damage to components.

ES

D Protection: Wear an ESD-preventative wrist strap connected to a grounded point. Handle the card by its edges and avoid touching connector pins or circuitry. Clean Workspace: Keep the area free of dust and debris.

Fiber-optic connectors are sensitive to contamination, which can increase signal loss and reduce performance.

Installing the Card

Locate the Slot: Identify an available PCIe slot (for servers/workstations) or the appropriate line card slot in a modular router chassis. Insert the Card: Carefully align the card with the slot and press it firmly until seated. Secure the card with bracket screws if applicable.

Install Transceivers: If the card uses pluggable transceivers (SFP, SFP+, QSFP+), insert them into the card's cages. Ensure the transceivers are clean and free of dust. Do not repeatedly remove and insert transceivers to avoid wear.

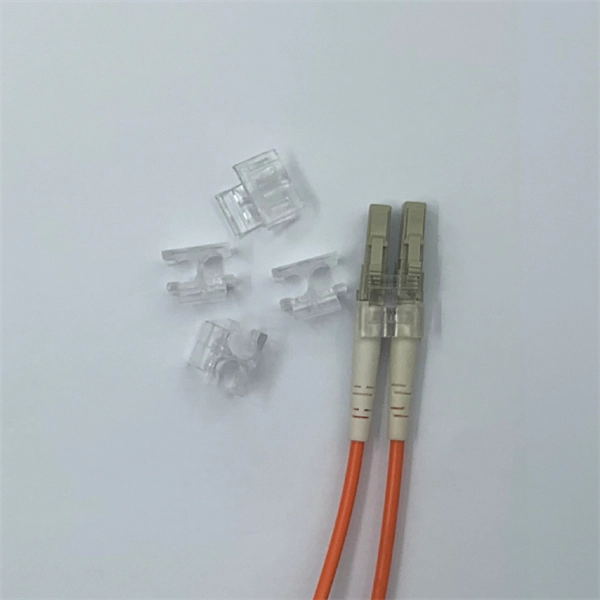

Connect Fiber Cables: Attach the fiber-optic cables to the transceivers. For single-mode fiber (SMF), use OS2 cables for long distances; for multimode fiber (MMF), use OM3/OM4 for shorter distances. Direct-attach cables (DAC) or active optical cables (AOC) can be used for very short connections.

Post-

Installation Steps

Reconnect Power and Boot: Power on the device and ensure the system recognizes the new card. For servers, check with lspci or ethtool -i on Linux, or Device Manager on Windows.

Install Drivers/

Firmware: Load the vendor-provided drivers and firmware updates to ensure full functionality and compatibility. Test Connectivity: Verify the link with a connected partner device using ping tests, iperf, or other network diagnostic tools. Ensure signal quality and speed meet expectations.

Monitor Temperature and Performance: High-speed dual-port cards can generate heat. Ensure proper airflow and cooling to maintain performance.

Additional Tips

Avoid bending fiber cables sharply; maintain the minimum bend radius to prevent damage. Keep transceiver dust caps on until ready to connect. For modular routers, follow manufacturer-specific guidelines for line card insertion and removal to prevent chassis damage or misalignment.

Use the management port (MGMT ETH) for initial configuration before connecting the main network interfaces to avoid IP conflicts. By following these steps, you can safely install a fiber optic router card, maintain signal integrity, and ensure reliable high-speed network connectivity.
