Panel fiber optic and network ports

A network panel with fiber optic ports is a patch panel designed to manage, organize, and connect multiple fiber optic cables for high-speed data transmission.

Overview

Fiber optic patch panels are essential components in modern network infrastructure, particularly in data centers and enterprise LANs. They provide multiple ports for fiber-optic connectors, allowing for efficient cable management, easy reconfiguration, and reliable connectivity between network devices such as switches, routers, and servers ( ).

Types and Formats

Fiber patch panels come in several formats to suit different installation needs: Rack-Mount Panels: Installed in standard 19-inch or 23-inch racks, these panels can range from 1U to larger formats, supporting dozens to hundreds of fiber connections. They are ideal for high-density environments like data centers ( ).

Wall-

Mount Panels: Compact panels mounted on interior walls, suitable for indoor applications with moderate fiber counts ( ). DIN-Rail Panels: Used in industrial settings with fewer connectors, mounted on DIN rails within control panels ( ). Outdoor Enclosures: Specially sealed panels designed to protect fiber connections from harsh environmental conditions ( ).

Connector Types and Density

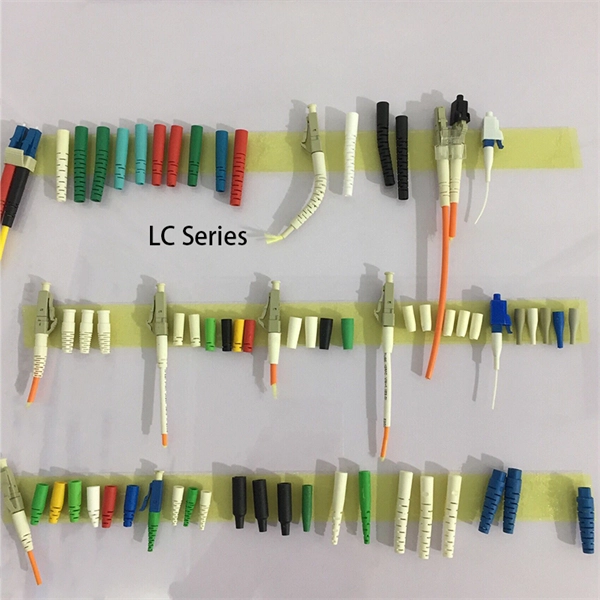

Fiber panels support various optical connectors, including LC, SC, and ST types. High-density panels can provide up to 72 LC duplex connectors in just 1U of rack space, with options to expand to 2U or 3U for even higher fiber counts ( ). This allows for efficient management of both single-mode (SMF) and multi-mode (MMF) fiber deployments.

Functionality

The primary functions of fiber optic panels include: Cable Management: Organizing incoming and outgoing fiber cables to prevent tangling and reduce signal loss ( ). Connectivity: Linking core switches, distribution switches, and routers to facilitate high-speed data transmission ( ). Flexibility: Allowing easy reconfiguration of network connections without disrupting the entire system ( ).

High-

Density Deployment: Reducing rack space requirements compared to traditional LGX configurations, improving accessibility and handling ( ).

Applications

Fiber optic panels are widely used in: Data Centers: For high-speed backbone connections and breakout configurations (e.g., 40G, 100G, 400G) ( ).

Enterprise LA

Ns: Centralized wiring closets for managing multiple network segments ( ). Industrial Networks: DIN-rail panels for control systems with limited fiber connections ( ). In summary, a network panel with fiber optic ports is a versatile and high-density solution for managing optical connections, ensuring reliable, high-speed communication, and simplifying network maintenance and expansion ( ).
