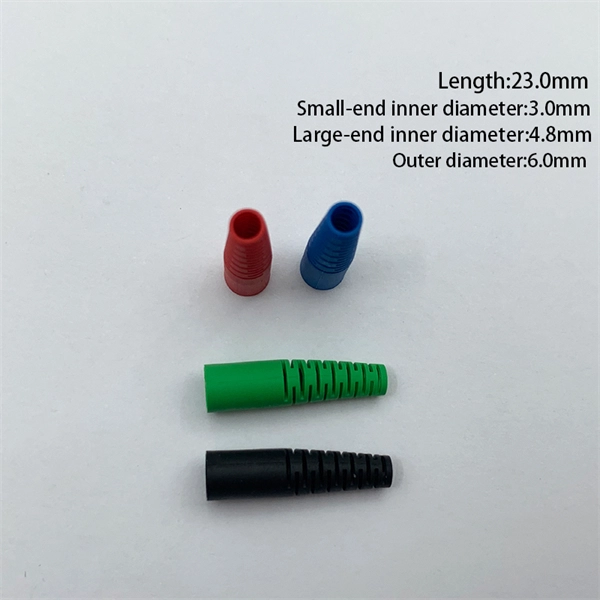

When dealing with pigtail attenuation

Fiber and communications infrastructure knowledge brief Published 02 Sep 2021

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Pigtail attenuation refers to the optical signal loss that occurs when connecting a fiber optic pigtail to a fiber system, influenced by splicing quality, fiber type, and connector alignment. What is a Fiber Optic Pigtail? A fiber optic pigtail is a short optical fiber with a connector on one end and a bare fiber on the other, designed to be spliced to a main fiber line for system integration.

Pigtails are commonly used in single-mode installations and are essential for precise alignment and low-loss connections in optical networks.

Causes of Attenuation

Attenuation in pigtails occurs due to several factors: Splicing Loss: Improper fusion or mechanical splicing between the pigtail and the main fiber can introduce signal loss. High-quality cleaving and precise alignment reduce this loss. Connector Loss: Misalignment or poor polishing of the connector end can increase insertion loss and return loss.

Fiber Type: Singlemode pigtails typically have lower attenuation (~0. 36 dB/km at 1310 nm, ~0. 22 dB/km at 1550 nm) compared to multimode pigtails, which are more affected by modal dispersion and limited to shorter distances.

Environmental Factors: Temperature changes, bending, or stress on the fiber can increase attenuation.

Minimizing Pigtail Attenuation

To achieve low attenuation: Use high-quality factory-terminated pigtails with polished connectors. Ensure proper fusion splicing with clean cleaves and minimal air gaps. Match the fiber type and core size between the pigtail and the main fiber to avoid mode mismatch.

Use index-matching gel if necessary to reduce reflection losses at splices.

Measurement of Pigtail Attenuation

Attenuation can be measured using: Cutback Method: Measures power before and after shortening the fiber to calculate loss per unit length.

OTD

R (Optical Time-Domain Reflectometer): Provides a trace of the fiber, showing loss at splices and connectors, including pigtails. Power Meter with Launch Cable: A pigtail can be used as a launch fiber to measure insertion loss when connecting to the fiber under test.

Summary

Pigtail attenuation is a critical factor in fiber optic systems, affecting signal quality and network performance. Proper selection of singlemode or multimode pigtails, careful splicing, and precise connector alignment are key to minimizing loss and ensuring reliable optical transmission.
