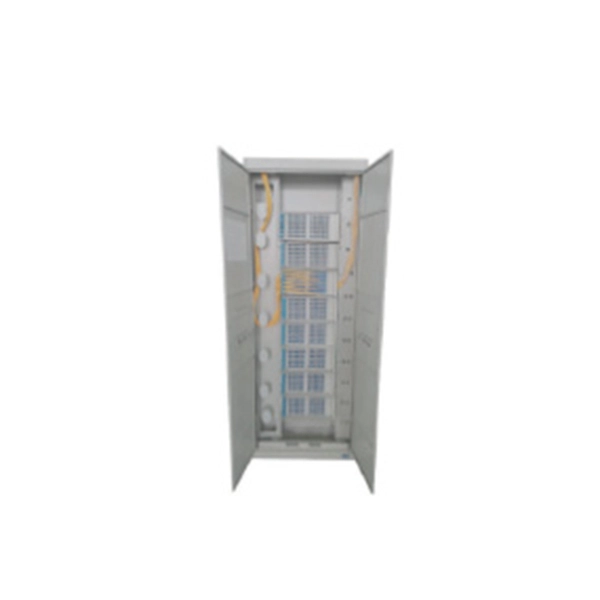

Standard ODF patch panel dimensions

Select an ODF patch panel based on fiber count, deployment type, and available space, typically ranging from 1U wall-mount panels for small networks to 4U rack-mount panels for high-density data centers. Key Considerations1.

Fiber Count and Port Density

For small-scale or FTTH deployments with 12–48 fibers, a wall-mount ODF is usually sufficient. For medium to large enterprise networks or data centers with 48–96 fibers, a rack-mount ODF in standard 19-inch or 23-inch racks is recommended. High-density environments may require 4U panels or modular ODFs that can scale to hundreds or thousands of fibers.

2. Mounting TypeWall-Mount ODFs: Compact, ideal for telecom rooms, small offices, or building entry points where floor space is limited.

Rack-

Mount OD

Fs: Standard 19-inch or 23-inch frames, suitable for data centers and central offices, supporting higher fiber counts and better cable management.

Modular OD

Fs: Scalable systems that allow adding trays or panels as fiber counts grow. 3. Tray and Adapter ConfigurationODFs use splice trays to terminate fibers, typically in bundles of 12 or 24 fibers per tray.

L

C adapters are preferred for high-density setups because they occupy half the space of SC adapters, allowing double the port density in the same 1U space. 4.

Space Planning

Standard rack heights are measured in U (1U = 44. 45 mm). Choose a panel height (1U–4U) based on fiber count and future expansion.

Ensure sufficient width and depth for cable routing; common widths are 600 mm, with additional space for patch cord management. 5.

Fiber Type Compatibility

Modern OD

Fs support both single-mode and multi-mode fibers, but proper labeling is essential to avoid mixing fiber types.

Practical Recommendations

Small office or FTTH basement distribution: 1U–2U wall-mount ODF with 12–48 fibers. Medium enterprise network: 2U–3U rack-mount ODF with 48–96 fibers. High-density data center: 4U rack-mount or modular ODF supporting hundreds of fibers, with LC adapters for maximum port density.

Future-proofing: Consider modular or expandable ODFs to accommodate network growth without replacing the entire panel. By evaluating fiber count, mounting type, tray configuration, and space availability, you can select an ODF patch panel that meets current needs while allowing for future expansion and efficient cable management.
