How to connect the fiber optic pigtail

To properly connect a fiber optic pigtail, you fuse the bare end of the pigtail to the incoming fiber using precise preparation, cleaning, cleaving, and splicing techniques to ensure a low-loss, reliable connection.

Understanding Fiber Optic Pigtails

A fiber optic pigtail is a short optical fiber with a factory-terminated connector on one end and a bare fiber on the other. The connector end plugs into equipment or patch panels, while the bare end is permanently spliced to the incoming fiber cable, providing a precise, low-loss connection. Pigtails are commonly used in single-mode and multi-mode applications and come in various connector types such as LC, SC, ST, or FC.

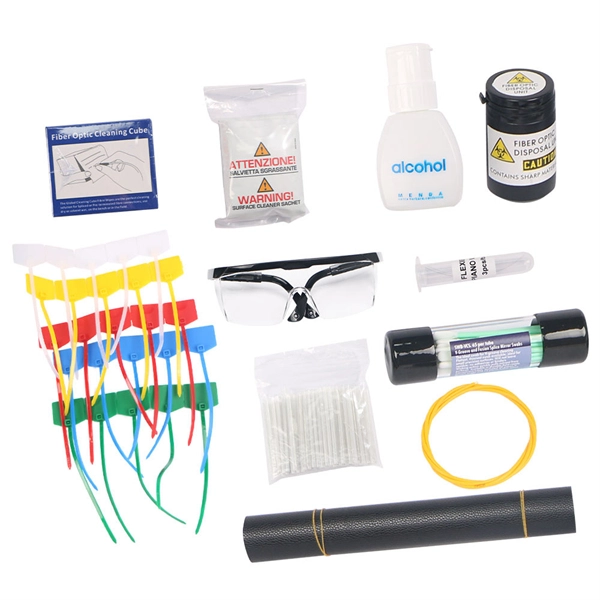

Tools and Materials Needed

Fusion splicer: Aligns and fuses the fibers for a permanent connection. Fiber cleaver: Cuts the fiber ends cleanly and flatly for optimal splicing. Alcohol and lint-free wipes: Cleans fiber ends to remove dust and contaminants.

Heat-shrink sleeves or mechanical splice protectors: Protects the spliced joint.

OTD

R or power meter: Tests the connection for signal loss and performance.

Step-by-

Step Connection Process

Preparation: Strip the protective jacket and buffer from the incoming fiber and the pigtail to expose the bare fiber. Handle fibers carefully to avoid breakage. Cleaning: Use isopropyl alcohol and lint-free wipes to clean the exposed fiber ends, removing dust, oil, or debris.

Cleaving: Use a fiber cleaver to make a precise, flat cut on both the pigtail and the incoming fiber. Proper cleaving is critical for low-loss splicing. Fusion Splicing: Place the fibers in the fusion splicer.

The splicer aligns the fibers and fuses them together, creating a permanent, low-loss joint. Protection: Slide a heat-shrink sleeve over the splice and apply heat to secure and protect the joint. Alternatively, use a mechanical splice protector if applicable.

Testing: Verify the splice quality using an OTDR or power meter to ensure minimal signal loss and proper network performance.

Best Practices

Always use pre-tested, high-quality pigtails to reduce installation errors. Maintain a clean work environment to prevent contamination of fiber ends. Avoid bending fibers sharply; maintain proper bend radius to prevent signal loss.

Label and organize pigtails in splice trays or distribution frames for easy maintenance. By following these steps and using the correct tools, you ensure a reliable, low-loss fiber optic connection that supports long-term network performance and minimizes the risk of rework or signal degradation.
