Fiber Optic Patch Panel and Switch Layout

Proper arrangement of fiber optic patch panels ensures organized cabling, easy maintenance, and scalable network growth. Key Principles for Arrangement1. Choose the Right Panel Type: Select panels based on installation location and network needs.

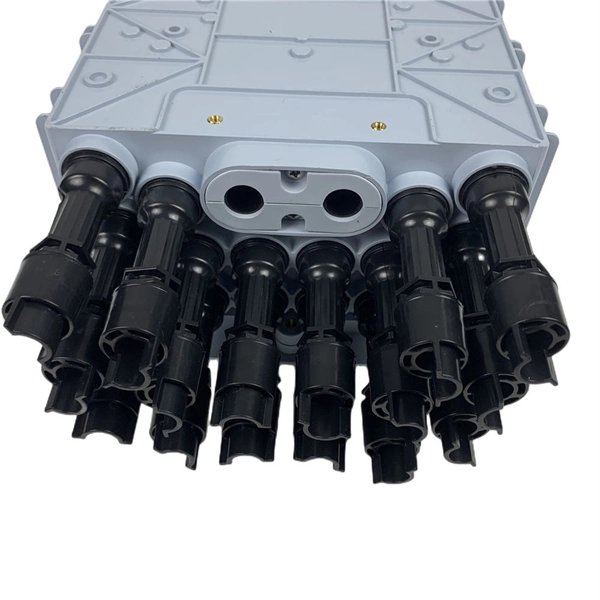

Common types include rack-mounted (19" or 23" racks), wall-mounted, outdoor, and DIN mount panels. Rack-mounted panels are ideal for data centers and server rooms, offering high port density and centralized management. Wall-mounted panels are suitable for compact spaces like FTTH or small office setups.

High-density MPO/MTP panels allow multiple fibers (up to 96 in 1U) to be managed efficiently. 2. Follow Structured Cabling Standards: Adhere to TIA-942 or ISO/IEC 11801 standards for structured cabling to ensure consistency, performance, and future scalability.

Centralized patch panels simplify moves, adds, and changes (MACs) and reduce troubleshooting time. 3. Organize and Label Cables: Label each port, panel, and trunk cable with unique identifiers.

Use fiber management accessories to maintain the minimum bend radius and prevent signal loss. Physically separate panels to reduce the risk of incorrect connections and improve troubleshooting efficiency. 4.

Plan for Scalability: Reserve extra ports and space for future expansion. Modular panels with cassettes or blank slots allow easy upgrades without major rework. Sliding or swing-out panels improve accessibility for maintenance.

5. MPO/MTP High-Density Considerations: For high-speed networks, use MPO/MTP patch panels to consolidate multiple fibers into a single trunk cable, reducing clutter and simplifying distribution.

MP

O cassettes provide structured demarcation points, allowing front-end LC patch cords to be changed without disturbing the main trunk. 6. Documentation and Maintenance: Store all cabling diagrams and panel documentation digitally.

This ensures efficient ongoing maintenance and quick troubleshooting.

Practical Layout Tips

Centralize panels in racks or cabinets for easier management. Separate incoming and outgoing fibers to avoid tangling. Use horizontal and vertical cable managers to route fibers neatly.

Maintain consistent labeling conventions across all panels. Ensure easy access to frequently used ports and high-density panels. By following these guidelines, a fiber optic patch panel arrangement can achieve organized cabling, minimal signal loss, simplified maintenance, and scalable growth for both current and future network demands.
