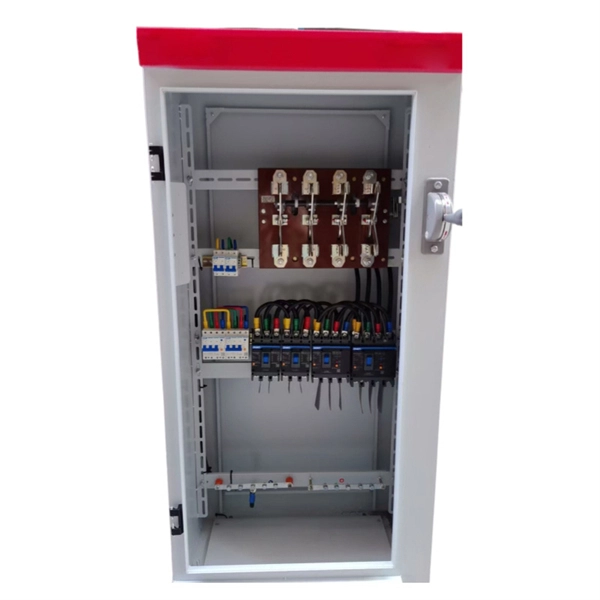

How to wire the branch circuit breakers in the distribution box

To wire a branch circuit breaker, connect the hot wire to the breaker terminal, the neutral wire to the neutral bus, and the ground wire to the grounding bar, following proper wire sizing and safety precautions.

Step-by-

Step Instructions1. Safety First Always turn off the main breaker before working inside the distribution box. Use insulated tools, wear protective gloves, and verify that no voltage is present with a non-contact voltage tester to prevent electric shock.

2. Prepare Materials Gather the required branch circuit breakers, appropriately rated wires, wire strippers, screwdrivers, and wire connectors. Ensure wire gauge matches the breaker rating (e.g., 14 AWG for 15A, 12 AWG for 20A),.

3. Determine Breaker Placement Install the branch breakers in the distribution box according to the layout. Typically, breakers are arranged from left to right, with reserved positions on the right side.

Ensure the breaker snaps securely onto the busbar. 4.

Wire Color Coding

Hot (phase) wires: black, red, or yellow depending on the phaseNeutral wires: blueGround wires: green or bare copper 5.

Connect Wires

Hot wire: Insert the stripped end into the terminal screw of the branch breaker and tighten securely. Neutral wire: Connect to the neutral bus bar. Ground wire: Connect to the grounding bar.

Ensure wires are routed neatly, with left-side wiring for incoming power and right-side wiring for outgoing circuits. 6. Organize and Secure Wires Use plastic ties to bind wires neatly, maintaining uniform spacing and avoiding kinks or sharp bends.

Clearly label each circuit for easy identification. 7. Final Checks After wiring, inspect all connections for tightness and correct placement.

Verify that no wires are exposed or touching other components. Conduct a safety inspection to ensure there are no short circuits or overload risks. 8.

Power On and Test Once all connections are verified, turn on the main breaker and test each branch circuit to ensure proper operation and that breakers trip correctly under fault conditions. Following these steps ensures a safe, organized, and code-compliant installation of branch circuit breakers in a distribution box.
