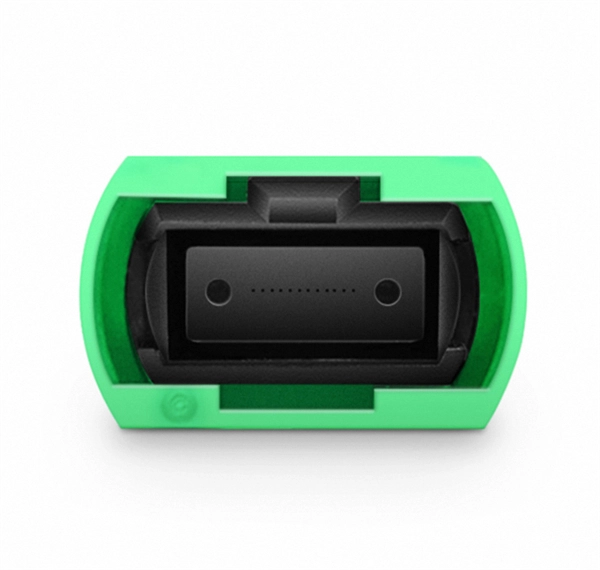

Comparison of Low-Loss and High-Performance Fiber Optic Adapters

LC adapters generally offer the lowest insertion loss and highest performance in high-density networks, while SC and MPO adapters provide durability and multi-fiber support with slightly higher loss.

Key Performance Metrics

Insertion Loss: This measures the reduction of optical power as a signal passes through an adapter.

L

C adapters typically exhibit 0. 1–0. 3 dB, SC adapters 0.

25–0. 5 dB, and MPO adapters 0. 2–0.

5 dB, depending on fiber count and alignment precision. Lower insertion loss translates to more efficient signal transmission and better network performance. Return Loss: This indicates the amount of light reflected back to the source.

Adapters with APC (angled physical contact) endfaces achieve higher return loss (around -60 dB), reducing reflections and improving signal stability, whereas UPC (ultra-physical contact) endfaces typically reach -30 dB. Durability: LC and SC adapters generally support 500–1,000 mating cycles, while MPO adapters, due to multi-fiber alignment complexity, support around 500 cycles. High-quality ceramic or metal alignment sleeves enhance longevity and maintain low loss over repeated use.

Factors Affecting Adapter Performance

Connector Interface Quality: Smooth, clean, and precisely manufactured interfaces reduce scattering and reflection, minimizing insertion and return loss. Adapter Material and Structure: Ceramic, metal, or high-precision plastic sleeves ensure accurate ferrule alignment, critical for low-loss connections. Fiber Endface Type: APC endfaces reduce reflection, while PC and UPC endfaces offer standard performance suitable for most applications.

Maintenance: Regular cleaning prevents contamination, which can significantly increase loss and degrade network performance. Practical RecommendationsHigh-Density Data Centers: LC adapters are preferred due to compact size, low insertion loss, and high port density. Legacy or Telecom Systems: SC adapters provide durability and ease of handling, suitable for patch panels with moderate density.

Multi-

Fiber Applications: MPO adapters are ideal for connecting multiple fibers simultaneously, though careful alignment is required to maintain low loss.

Critical Low-

Loss Links: Use APC endfaces and high-quality ceramic sleeves to minimize reflection and insertion loss.

Summary

For optimal low-loss performance, LC adapters with APC endfaces and high-precision alignment sleeves are generally superior, especially in high-density or high-speed networks.

S

C adapters offer robustness and simplicity, while MPO adapters enable multi-fiber connections but require careful handling to maintain performance. Proper selection, material quality, and maintenance are essential to ensure stable, low-loss fiber optic connections.
