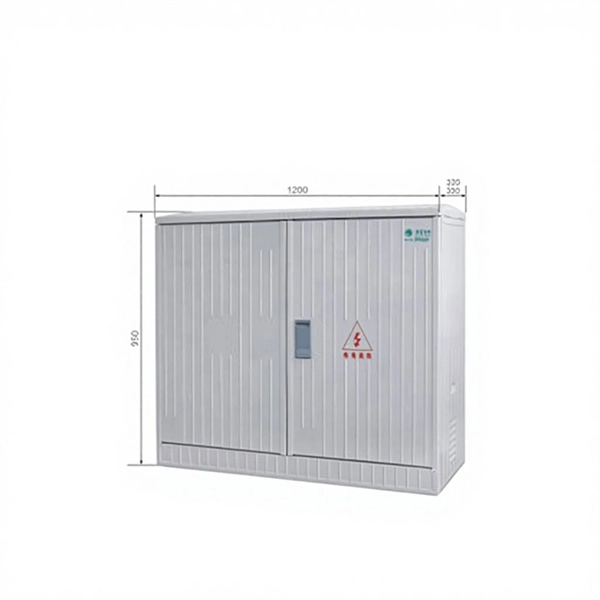

Photovoltaic power station combiner box has no communication

No communication with a PV combiner box is often caused by damaged monitoring modules, RS485 line faults, or communication interference, and can be diagnosed through systematic voltage checks and inspection of connections. Common Causes1. Communication Line Short Circuit If the RS485 communication line is shorted, all combiner boxes in the array may fail to communicate, showing zero voltage at the combiner box module.

This can occur due to damaged cables, improper routing, or environmental stress such as moisture ingress or rodent damage. 2. Damaged Monitoring Module A faulty monitoring module is a frequent cause of communication failure.

Symptoms include one or more combiner boxes not reporting data while others function normally. This is often confused with interference, but a zero-voltage reading at the RS485 terminal indicates module damage. 3.

Communication Interference Electrical noise from inverters, mixed installation of power and communication cables, ungrounded communication lines, excessive cable length, or non-isolated communication terminals can disrupt RS485 signals, leading to intermittent or complete communication loss. 4. Electrical Connection Faults Loose terminals, poor contact, or cable breakage inside the combiner box can indirectly affect communication by causing voltage fluctuations or tripping protective devices.

Signs include discoloration, scorching, or fluctuating voltage readings.

Diagnostic Steps

Safety First: Ensure the DC disconnect is OFF and apply lockout/tagout procedures. Verify zero voltage with a calibrated multimeter before opening the combiner box. Visual and Physical Inspection: Check all cable connections, terminals, fuses, and breakers for looseness, corrosion, or damage.

Gently wiggle cables to detect intermittent faults. RS485 Voltage Measurement: Disconnect communication lines and measure voltage at each combiner box. A zero reading indicates a short circuit or module failure.

Isolate and Test: Reconnect communication lines one by one to identify the faulty segment or box. Replace damaged monitoring modules if necessary. Check for Interference: Ensure communication cables are properly routed, grounded, and separated from high-voltage lines.

Consider using shielded cables or repeaters for long distances.

Preventive Measures

Regularly inspect combiner boxes for loose connections, corrosion, or environmental damage. Maintain proper separation and grounding of communication and power cables to minimize interference. Use high-quality connectors and follow torque specifications to prevent contact degradation.

Implement surge protection and ensure IP-rated enclosures to protect against moisture and dust ingress. By systematically checking RS485 lines, monitoring modules, and electrical connections, most communication failures in PV combiner boxes can be identified and resolved, restoring monitoring functionality and preventing power loss or safety hazards.
