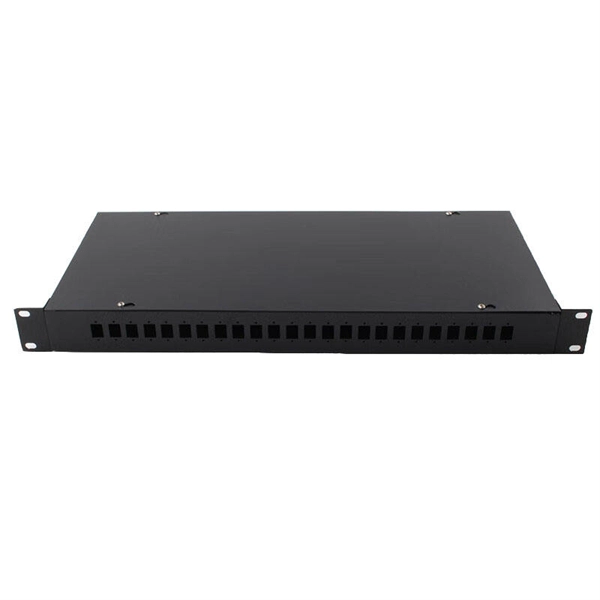

Co-location optical splitter

Optical splitters are typically installed at central network points such as central offices, distribution frames, or residential building wiring closets to efficiently branch optical signals.

Typical Installation Locations

Indoor Locations: Central computer rooms or central offices: Optical splitters are often housed here to manage the main distribution of optical signals to multiple users. Building weak current wells or floor wiring boxes: In multi-dwelling units, splitters can be installed in these accessible areas to distribute signals to individual apartments or offices. Patch panels or equipment racks: Rack-mounted or module-type splitters are used in data centers or telecom rooms for organized signal management.

Outdoor Locations: Outdoor enclosures or cabinets: For first-level splitting in residential networks, splitters can be placed in weatherproof boxes near the street or community distribution points. Fiber crossover boxes: Splitters may be installed in these boxes to branch signals from main feeder lines to local distribution lines.

Considerations for Placement

Signal Quality: Placement should minimize fiber length and bends to reduce insertion loss and maintain signal integrity. Accessibility: Splitters should be accessible for maintenance, testing, and future network expansion. Environmental Protection: Outdoor splitters require protective enclosures to prevent damage from weather, dust, or physical impact.

Network Hierarchy: First-level splitters typically handle larger splits (e.g., 1x32) and are placed closer to the central office, while second-level splitters (e.g., 1x4 or 1x8) are installed nearer to end users. By strategically placing optical splitters in these locations, network operators can efficiently distribute optical signals, optimize bandwidth usage, and ensure reliable service for multiple end users.
