How to connect fiber optic cables in a triple-play data center

Proper fiber optic connection in a triple-play data center requires careful planning, correct cable selection, structured routing, and thorough testing to ensure high-speed, reliable service.

Planning and Design

Before installation, map out the cable pathways within the data center, including overhead trays, raised floors, or walls, ensuring they are free of obstacles. Determine the fiber type (single-mode for long distances, multimode for shorter runs) and connector types (MPO, LC, or SC) based on your equipment requirements. Allocate extra cable length for future reconfigurations to maintain flexibility and scalability.

Cable Routing and Management

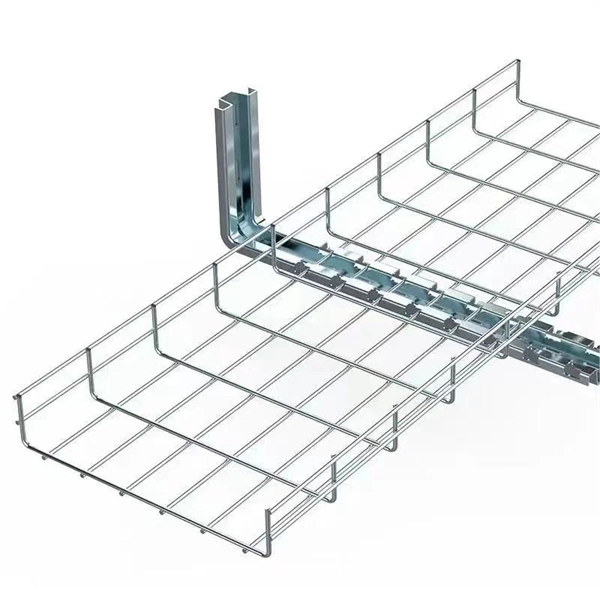

Separate fiber and copper cables to prevent interference. Use horizontal and vertical cable trays to organize cables neatly and maintain airflow. Maintain the minimum bend radius (typically 10x the cable diameter) to avoid signal degradation.

Use Velcro ties instead of zip ties to secure cables without damaging them. Label all cables clearly at both ends and intermediate points, using color-coding for easy identification.

Connector Handling and MPO Assembly

Inspect MP

O connectors under a microscope and clean them using proper MPO cleaning tools before insertion. Ensure correct polarity (Method A or B) for 40/100G multimode parallel fiber solutions to maintain signal integrity.

Plug MP

O connectors into adapters or transceivers with proper orientation and alignment. For high-density connections, consider ribbon cables or pre-terminated trunks to reduce installation time and increase fiber density.

Testing and Documentation

Test each fiber link for insertion loss and return loss using an MPO tester or OTDR. Record all test results, cable maps, and port assignments for future troubleshooting and upgrades. Maintain a structured documentation system to track fiber connections, ensuring quick identification and repair if needed.

Deployment Considerations

Use pre-terminated fiber assemblies for faster deployment and reduced risk of errors. For cabinet-to-cabinet backbone links, prefer trunks with MPO connectors for mechanical protection and scalability. Plan for future expansion by leaving space in racks and trays for additional fibers.

By following these best practices, a triple-play data center can achieve high-performance, reliable, and scalable fiber optic connectivity, supporting internet, TV, and voice services efficiently.
