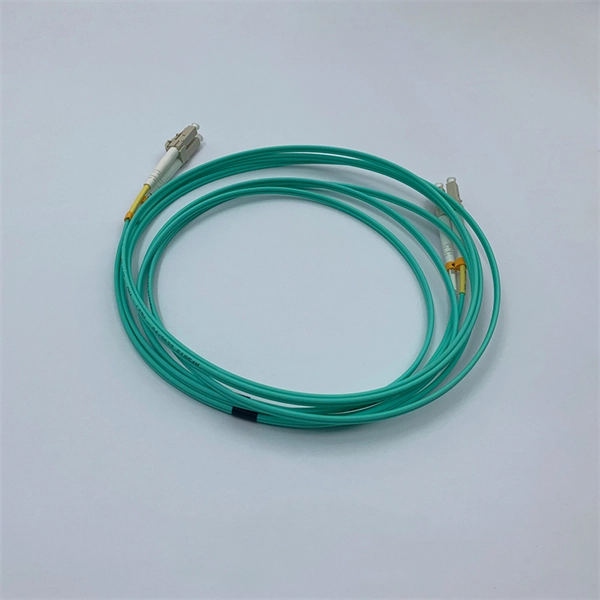

What attenuation level is considered acceptable for fiber optic patch cords

For fiber optic patch cords, acceptable attenuation is typically 0. 2–0. 5 dB per connector, with singlemode fiber under 0.

4 dB/km plus 0. 5 dB per connector.

Overview of Attenuation

Attenuation in fiber optic patch cords refers to the loss of optical signal strength as light travels through the fiber. Even high-quality fibers experience some loss, which increases with distance, wavelength, and the number of connectors or splices in the link. Excessive attenuation can lead to unstable connections, data errors, and reduced network performance.

Typical Acceptable Loss Values

Singlemode fiber (SMF): Loss should generally be under 0. 4 dB/km, with an additional 0. 5 dB per connector considered acceptable.

Multimode fiber (MMF): Attenuation is higher at shorter wavelengths (e.g., 850 nm) and typically ranges from 2–3 dB/km, with connector losses around 0. 2–0. 5 dB.

Patch cord connectors: A properly installed and clean connector should not exceed 0. 2–0. 5 dB of loss.

Dirty, misaligned, or damaged connectors can significantly increase attenuation.

Factors Affecting Patch Cord Attenuation

Fiber type and wavelength: Singlemode fibers at 1310 nm or 1550 nm have lower attenuation than multimode fibers at 850 nm or 1300 nm. Connector quality: Precision connectors reduce reflection and insertion loss. Poor alignment or scratches increase attenuation.

Cable length: Longer patch cords naturally introduce more loss, though high-quality cables minimize this effect. Installation practices: Avoid sharp bends, excessive pulling, or dirty environments to maintain low attenuation.

Best Practices

Use low-attenuation patch cords to maintain signal strength, especially in high-speed networks (10G, 40G, 100G),. Inspect and clean connectors regularly to prevent signal degradation. Measure insertion loss using an optical loss test set (OLTS) or light source and power meter to ensure the patch cord meets specifications.

Consider the loss budget of the entire fiber link, including all patch cords, splices, and connectors, to ensure the system operates reliably. By adhering to these guidelines, fiber optic patch cords can maintain stable, high-quality optical signals, minimizing errors and ensuring efficient network performance.
